Under the dual momentum of the "dual carbon" strategy and the global shipping green transformation, green methanol is emerging as a "liquid sunshine" core clean energy to replace fossil fuels. China produces over 900 million tons of straw annually, making it a golden raw material for producing green methanol. A high-yield, stable, and intelligent straw shredding pretreatment process is the key step to unlocking the full chain from "field waste → syngas → green methanol," directly determining conversion efficiency, production capacity, and economic benefits.
Straw to Green Methanol: The "Golden Raw Material" Opportunity in a Trillion-Yuan Track
Green methanol uses renewable biomass as its carbon source and green hydrogen as its hydrogen source. Its full lifecycle carbon footprint is more than 80% lower than traditional fossil methanol, with some processes achieving over 150% carbon reduction. It is a vital fuel for shipping, heavy transport, and green chemicals.
- Abundant Raw Materials: Straw from corn, wheat, rice, and other agricultural and forestry residues is inexhaustible, with an annual usable energy potential equivalent to 460 million tons of standard coal.

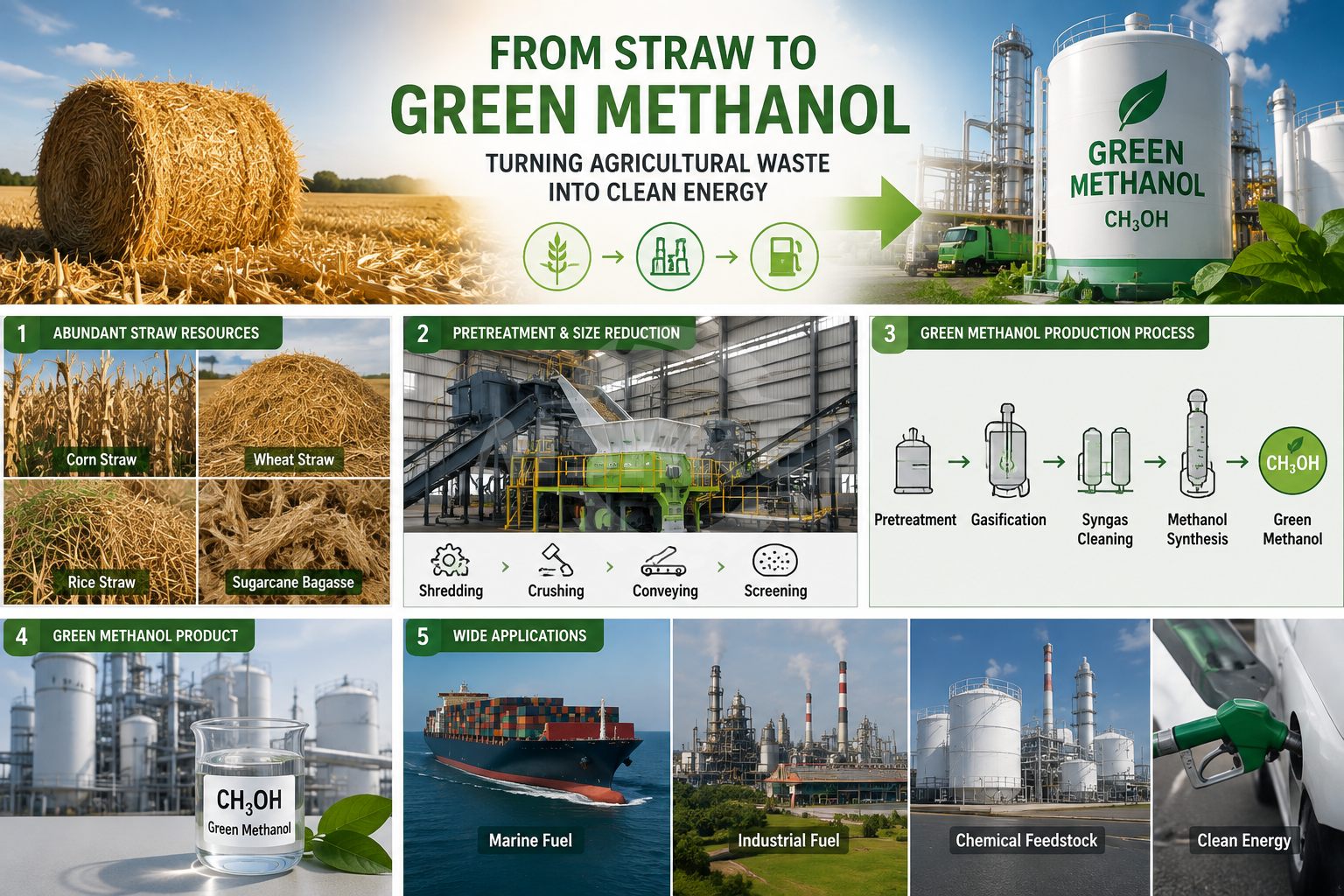

- Clear Conversion Pathway: Straw → Shredding pretreatment → Gasification/fermentation to produce syngas (CO+H₂) → Catalytic synthesis → Green methanol.
- Significant Benefits: 1 ton of dry straw ≈ 0.3 tons of methanol, replacing 0.5 tons of standard coal. Each ton of straw-based methanol reduces carbon emissions by 2.1 tons, balancing environmental protection and profitability.
Industry data confirms this: numerous million-ton-level green methanol projects are being intensively deployed across China. Leaders like Daqing Refining and Chemical Company and China Energy Engineering Corporation are investing heavily. Straw-to-methanol has moved from demonstration to scale, and demand for pretreatment equipment is experiencing explosive growth.
Two Main Pathways from Straw to Methanol Share a Common "Life-or-Death" Step: Pretreatment
A. Gasification Route (More "Chemical-Oriented")
Straw → Pretreatment (Shredding + Impurity Removal) → Gasifier → Syngas Conditioning (H/C Ratio) → Methanol Synthesis → Purification
Here, pretreatment is not just about "shredding"; it addresses three critical aspects:
1. Bale Breaking and Fiber Shredding: Dual-Shaft Shredder for Rapid Primary Shredding
- Capacity: 1–60 tons/hour
- Output Size: 100–200mm
- Advantage: Low speed, high torque, anti-winding. Can directly handle baled corn stalks, wheat straw, reeds, and other long-fiber materials.
2. Deep Impurity Removal: Integrated Sorting System for Raw Material Purity
Impurities mixed in straw, such as soil, stones, plastic film, and iron wire, are "hidden killers" that cause wear and downtime in downstream equipment. Through a combined impurity removal process of "drum screen + air classifier + magnetic separator," various impurities can be effectively removed, ensuring raw material purity and meeting the stringent requirements of green methanol gasification.
3. Uniform Particle Size: Hammer Mill, Professional Straw Grinder
- Output Particle Size: 3–10mm (adjustable)
- Easily achieves uniform shredding, significantly increases specific surface area, and substantially improves gasification efficiency and syngas stability.
B. Fermentation/Biogas Route (Derivative Pathway, More Wet-Based Organic Flow)
Mixtures of food waste, manure, and straw often first undergo shredding, homogenization, and impurity separation to ensure stable feeding for the anaerobic system. Subsequently, biomethane or syngas is extended towards methanol production. Here, "shredding" is also not merely for size reduction, but to increase contact area and stabilize feed quality.
Scientific shredding pretreatment not only increases methanol yield but also significantly reduces subsequent processing costs, allowing the energy value of straw to be more fully utilized.
Why Choose GEP ECOTECH's Straw Shredding Pretreatment Equipment?
GEP ECOTECH has been deeply involved in the solid waste and biomass energy sectors for over a decade. Our developed straw shredding equipment is specifically designed for agricultural and forestry waste, offering outstanding advantages:
- High-Value Shredding: Utilizes single-shaft, dual-shaft, or four-shaft shredding technology with adjustable particle sizes to meet different pretreatment requirements.
- Stable and Durable: Key components are made of high-strength materials, ensuring longevity and suitability for long-term continuous operation.
- Energy-Efficient and Eco-Friendly: The equipment operates with low noise and low energy consumption, and is equipped with dust removal systems, aligning with modern energy utilization concepts.
- Automated Operation: An optional intelligent control system enables one-button start/stop, automatic monitoring, and scientific management, improving production efficiency.
These advantages allow straw to be quickly shredded and rapidly enter the methanol production stage, truly realizing the transformation of "waste into fuel."
Successful Cases
In biomass energy projects in regions like Guangxi and Henan, GEP ECOTECH's straw shredding pretreatment equipment has helped enterprises achieve annual production targets of tens of thousands of tons of biomass methanol. The equipment operates stably, requires simple maintenance, helps users quickly recoup their investment, and improves energy utilization rates.
Straw is no longer just waste from farmland; it is a crucial source of future clean energy. Choosing high-value shredding pretreatment equipment is the key step to unlocking the energy potential of straw. GEP ECOTECH's straw pretreatment solutions help enterprises rapidly transition from agricultural and forestry waste to high-value liquid energy, achieving green circular development.
Contact GEP ECOTECH now for a free equipment design plan, quotation, and trial service. Let straw gain new life in your factory!
